UFG-12 Series is a modern PCIe bus based frame grabber family that captures both video and audio. UFG-12 family is compatible with standard DirectShow and V4L2 applications and the included SDK enables easy integration with the customer’s own program in the Windows environment. The efficient PCIe bus enables the high data throughput needed to capture crystal clear high-resolution video. Application areas for the UFG-12 Series can be found in medical, industrial, multimedia, or in maritime environments.

Low Profile Board

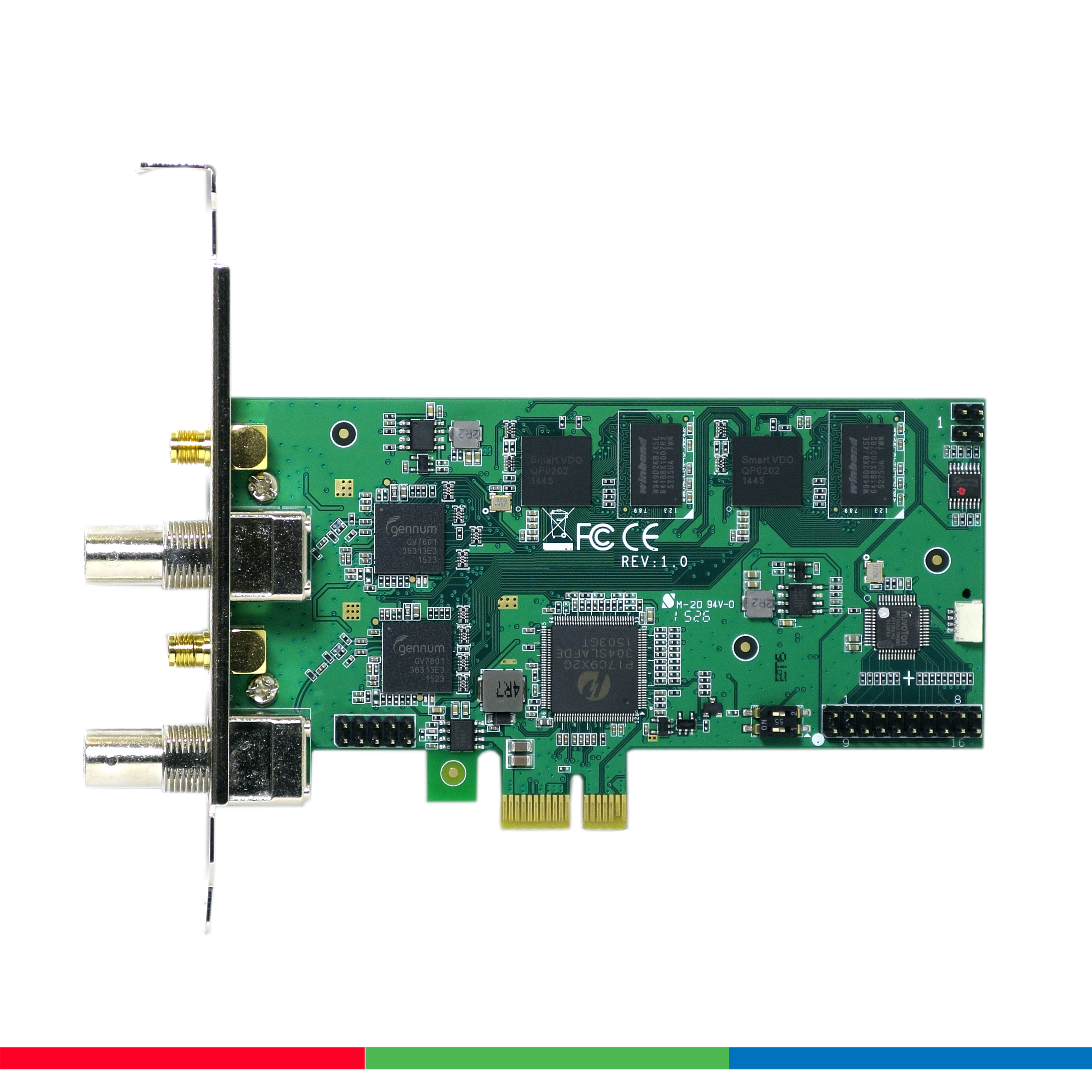

UFG-12 2S low profile frame grabber features two (2) independent SDI inputs. They enable simultaneous capture of the video and audio of two SDI streams. This makes UFG-12 2S an optimal choice for compact-sized Media storage PCs where the use of PCIe slots needs to be optimal.

UFG-12 2s Connectors


  • 2 parallel SDI capture channels
  • SDI signal pass-through
  • Low profile board
  • 1920×1080 Full HD at 50/60 fps
  • Capture both video and audio
  • DirectShow for Windows
  • SDK for easy integration
