DP Alt Mode

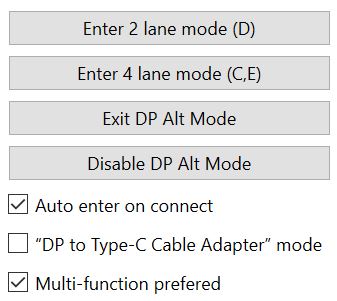

DP Alt Mode Options

Please, note that the DUT does not necessarily support all different modes. There is no notice or warning from UCD Console. Please, monitor the Status window to see if the mode changes like in the GIF below. For information on the pin assignemnt D, C and E, click here.

  • What is the difference with auto enter?
  • What is multi-function?
  • Exit –> enter?
  • Disable –> enter?

DP Alt Mode Capabilities

In the window above you can select which pin assignments the UCD test tool supports.



  • Is E for usb type c  to dp adapter?
