HDCP 2.3 CTS for testing Repeater DUT on DP


DCP LLC Approved DisplayPort HDCP 2.3 CTS for testing Transmitter, Receiver and Repeater DUT.

(Sets 2C + 1A + 1B + 3A + 3B + 3C)

UCD-400, UCD-340, UCD-323 & UCD-301 as DCP Approved Test Tools

The HCDP 2.3 CTS tool is an extension to Unigraf’s wide selection of compliance test tools for DisplayPort interface. The new HDCP 2.3 compliance tests use UCD-400 or UCD-300 series test equipment as their hardware platform.

The new tests allow for testing DP Transmitter, Receiver and Repeater DUTs. UCD-400 (DP 1.4) UCD-340 (DP over USB-C) and UCD-323 (DP 1.2) test equipment function as a Transmitter and Receiver while UCD-301 functions as a Receiver only. UCD-400 allows for simultaneous Transmitter and Receiver functionality while enabling the Repeater tests as well.

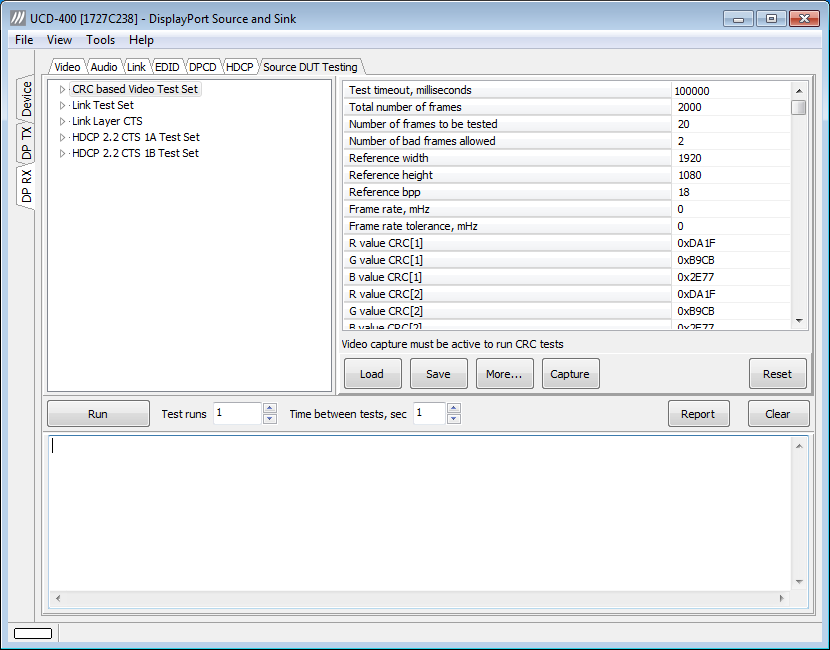

Used via UCD Console

HDCP 2.3 CTS capability is an add-on feature to UCD-300 debug tool called UCD Console. The tests can be straightforwardly enabled to any UCD-400 or UCD-300 installation with an SW update and application of the corresponding license key.

In addition to the Compliance Tests, UCD-400 and UCD-300 Series devices feature also Functionality Testing of HDCP 1.3 and HDCP 2.3 encryption.
