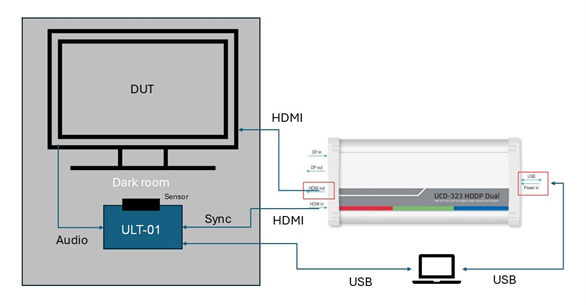

UCD-323 • HDMI & DisplayPort 4K Video Generator & Analyzer

Description
UCD-323 is a fully-featured R&D debug tool for testing all aspects of HDMI 2.0 and DisplayPort 1.4a (limited to HBR2 max bit rate capability). UCD-323 combines Reference Source and Reference Sink functionality in one unit. UCD-323 is a DCP LLC Approved Test Tool for HDCP 2.3 CTS Tests on DisplayPort Transmitters and Receivers devices.
UCD-323 is delivered with ready-made test sets that can be configured and run via easy-to-use PC GUI called UCD Console. All tests can be automated for compliance testing, R&D debugging, and production line testing.
Approved Dolby Vision Compatibility Test Tool
Unigraf’s UCD-323 has been approved as an official Dolby Vision™ compatibility test tool. In the compatibility test for Dolby Vision™ Unigraf will provide playback and capturing of the test video and audio content with UCD-323. In addition, UCD-323 can be used to test Dolby Atmos on Source DUTs. Further, Dolby will provide customers with the SDK (Software Development Kit) that enables analyzing the Dolby Vision™ video captured with the UCD-323. As of now, Dolby Vision™ testing is available for HDMI interface. UCD-323 also supports Dolby Vision signaling test using Dolby Vision VSIF and Dolby Vision Vendor Specific Extended Metadata Packets (EMP) using TMDS. With the Dolby SW package, UCD-323 is a mandatory tool for any e.g. television or monitor manufacturer that is willing to have a Dolby Vision™ certificate on their products.
Approved HDR10+ Display Device Test Tool
Unigraf’s HDR 10+ Display Device Test License (MT6675), allows HDR 10+ adopters to generate HDR 10+ specific patterns that are required by HDR 10+ LLC to certify Sink devices such as TVs and Monitors for HDR 10+.
Unigraf’s solution integrates Klein K-10A colorimeter for automated testing of HDR 10+ Display Device tests allowing users to set and play the patterns without having to manually measure luminance values of HDR 10+ patterns. Users that do not have Klein K-10A colorimeter will be able to manually record measured luminance values into the software GUI. This solution is easy to use and reduces the time required to run HDR 10 Display Device certification tests.
HPCD 2.3 CTS Test Tool
UCD-323 is a DCP LLC Approved Test Tool for HDCP 2.3 Compliance Testing on DisplayPort Transmitter and Receiver devices. HDCP 2.3 Compliance Test capability is an add-on feature to the UCD Console GUI. HDCP 2.3 CTS tests can be straightforwardly enabled to any UCD-323 Test Tool with an SW add-on. The software add-on can be purchased separately for testing transmitter or receiver devices.
Platform for Test Automation
Run automated tests straight from the command line by using C++ code. Unigraf also provides users with a library of scripts that can be used an example for detailed tests. The scripts are run through Unigraf’s Test System Interface (TSI) which is the test software API that allows system integrators a fast and reliable way for ensuring the functionality of the test equipment. These scripts can be used to automate all the tests available in the UCD-323, including Compliance Tests for HDCP 2.3.
UCD Console
The UCD-323 Graphical User Interface (GUI) is called UCD Console. It provides users with a flexible way of navigating between its sink and source roles and functionalities of each role. Available functionalities include preview windows for captured video and audio, video and audio pattern generator, data logger for AUX and metadata content, link and DPCD register monitoring and control dialogs, EDID editor, HDCP status and control functions etc. UCD Console is delivered with ready-made test sets (e.g. content check-sum tests and Link Training tests) for testing HDMI Sinks and Sources.
E-learning center: Introducing UCD Console
UCD Console Pro
You can take your debugging to the next level with UCD Console Pro Features. Pro features are a software add-on for UCD-323. You can purchase UCD Console features separately for DisplayPort or HDMI sinks and sources Please, refer to the tables below to compare the UCD Console and UCD Console Pro features.
NOTE: HDCP 2.3 Support is available as an add-on feature for UCD Console Pro.
NOTE: Console Pro also includes TSI Advanced Test Set.
For Testing Source Devices
Role | Feature | UCD Console | UCD Console Pro for testing source devices |
---|---|---|---|
Testing HDMI sources (HDMI RX) | Video preview and saving | ✓ | ✓ |
Audio monitoring and saving | ✓ | ✓ | |
Status information of the upstream link | ✓ | ✓ | |
EDID editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
InfoFrames | ✓ | ||
Ready-made test sets (CRC, Link) for testing source DUT | ✓ | ||
Testing DisplayPort sources (DPRX) | Video preview and saving | ✓ | ✓ |
Audio monitoring and saving | ✓ | ✓ | |
Status information of the upstream link | ✓ | ✓ | |
Video mode and control of the upstream link | ✓ | ||
EDID editor | ✓ | ||
DPCD editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
Ready-made test sets (CRC, Link) for testing source DUT | ✓ | ||
Event Log, DP AUX Analyzer | ✓ |
For Testing Sink Devices
Role | Feature | UCD Console | UCD Console Pro for testing sink devices |
---|---|---|---|
Testing HDMI sinks (HDMI TX) | Video pattern generator | ✓ | ✓ |
Audio generator | ✓ | ✓ | |
Status information of the downstream link | ✓ | ✓ | |
Control of the downstream link | ✓ | ||
EDID Editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
Testing DisplayPort sinks (DPTX) | Video pattern generator | ✓ | ✓ |
Audio generator | ✓ | ✓ | |
Status information of the downstream link | ✓ | ✓ | |
Control of the downstream link | ✓ | ||
EDID editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
Ready Made test sets (link) for testing sink devices | |||
Event Log, DP AUX Analyze | ✓ |
TSI SDK Advanced Test Set
UCD-323 Test Tool is delivered with Unigraf’s basic SDK (System Development Kit). Unigraf’s SDK is called TSI (Test System Interface). TSI.exe is a high-level software API (Application Programming Interface) for creating automated tests in an IDE (Integrated Development Environment).
TSI SDK Advanced Test Set provides user with e.g. EDID and DPCD Editor and built-in Source DUT tests (CEC, CRC). TSI SDK Advanced Test Sets can be straightforwardly enabled to any UCD-323 with a software add-on. Please refer to the table below to compare TSI Basic and TSI Advanced test sets.
NOTE: TSI Advanced includes test sets for testing HDMI sinks / sources and DP sinks / sources
NOTE: HDCP 2.3 support is a software add-on for TSI SDK Advanced Test Set
Role | Feature | TSI Basic | TSI Advanced |
---|---|---|---|
Testing HDMI sources (HDMI RX) | Video preview and saving | ✓ | ✓ |
Audio monitoring and saving | ✓ | ✓ | |
Status information of the upstream link | ✓ | ✓ | |
EDID editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
InfoFrames | ✓ | ||
Ready-made test sets (CRC, Link) for testing source DUT | ✓ | ||
Testing DisplayPort sources (DPRX) | Video preview and saving | ✓ | ✓ |
Audio monitoring and saving | ✓ | ✓ | |
Status information of the upstream link | ✓ | ✓ | |
Video mode and control of the upstream link | ✓ | ||
EDID editor | ✓ | ||
DPCD editor | ✓ | ||
HDCP status monitor and control | ✓ | ||
Ready-made test sets (CRC, Link) for testing source DUT | ✓ | ||
Testing HDMI sinks (HDMI TX) | Video Pattern Generator | ✓ | ✓ |
Testing DP sinks (DPTX) | Video Pattern Generator | ✓ | ✓ |
Status information of the downstream link | ✓ | ✓ |
Highlights
-
UHD / 4K compliant test equipment
-
HDMI 2.0 and DP 1.4a (limited to HBR2 Link Rate) input and output in one unit
-
DCP approved HDCP 2.3 CTS Test Tool
-
HDCP 1.3 and HDCP 2.3 support
-
Approved HDR 10+ Display Device Test Tool
-
Sink and source video, audio and configuration parameters
-
USB 3.0 connected
